Diamond Range
Nexgen Luxury Fibreglass and Performance
Pontoon Boats
Diamond
Range
Top of the line in luxury
HULL PACKAGES FROM $87,900 INC GST
Model ……………………………………………… Diamond
Deck Size…….………………………………… 25 & 27
Tubes:……………………………………………… 3
Layout options:………………………… 3
Max HP: ……………………………………….… 300
People: ……………………………………………. up to 15
Get ready to indulge in the epitome of luxury with Nexgen Pontoon Boats Diamond fibreglass range of luxury pontoon boats sitting alongside our new Larimar fibreglass range. It's a love-at-first-sight kind of experience that boasts models in sizes 25’, and 27’.
Treat your senses to the visually stunning curved bow, polished stainless trim, and the smooth, flawless feel of fibreglass fencing. Not forgetting the electric lifting fibreglass tower, dual consoles, windscreen with centre opening, underdeck storage, triple pontoons, lifting strakes, and loads more. Prepare to be captivated by the unparalleled performance and sophistication of the Diamond luxury pontoon boat range.
Inclusions
Diamond luxury pontoon boats include
-
3 x pontoons (2.5mm aluminium, compartmentalized with 27” centre pontoon as standard
Splash fins
Lifting strakes
Full length welded keels
Marine timber deck with aluminium underskin
Luxury weave flooring
Deck corner protection
Bow and stern stainless steel mooring cleats (4 in total)
Aluminium deck trim to all sides
Integrated transom motor pod
Fibreglass styled exterior fencing
Front gate with lockable bow storage compartments
Deluxe fibreglass drivers console (push button switch panel, USB, 12V port)
Deluxe fibreglass observers console
Hydraulic steering with sports steeing wheel
Low profile windshield with
centre walk through opening.Control panel
MP3 player with Bluetooth and six speakers
160 litre fuel tank
Luxury furniture seats and sofas
Swivel pedestal captains chair with rotating arm rests and slide adjust
Swivel pedestal observers chair with rotating arm rests and slide adjust
Roto moulded sofa with under storage (as per layout selection)

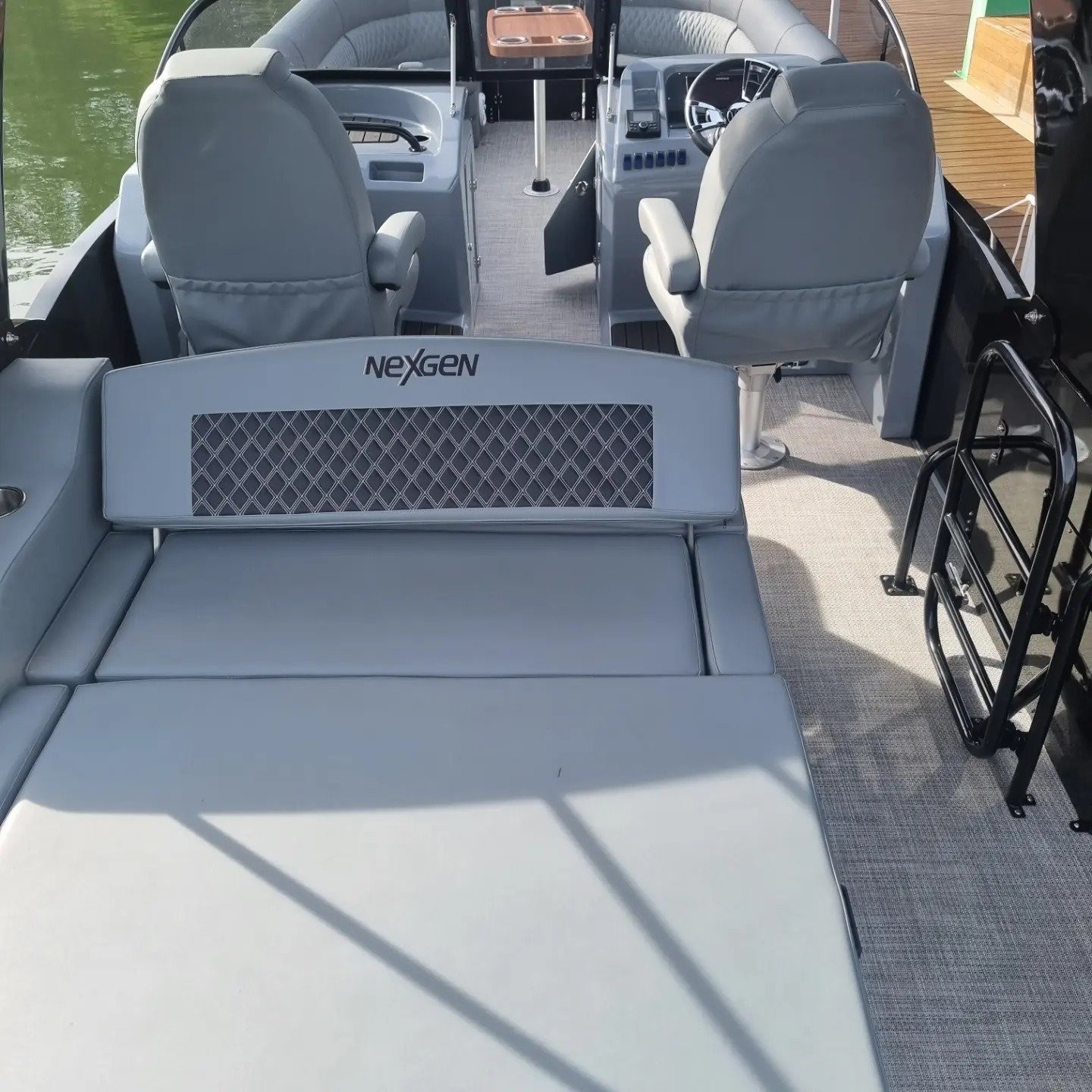

Swing back stern lounge sunbed (layout dependent)
navigation lights
Interior and exterior deck lights
Fibreglass sports tower (electric lifting) with single bimini, LED & anchor light
Additional front bimini.
Quick release bimini hardware & frames
Underdeck storage with bilge pump
Rear 4 step stainless steel ladder
Ski pole
Removable deluxe table
Stainless steel cup/drink holders
**standard inclusions may vary depending on size/layout options
-
Performance sheeting
Custom made boat cover
Galvanised Tandem trailer with electric over hydraulic brakes
Motors
Power assisted steering
Stainless steel BBQ stand
Full set of clears
Dometic bar fridge and sink console
-
3 year hull & deck warranty *click here for full warranty details

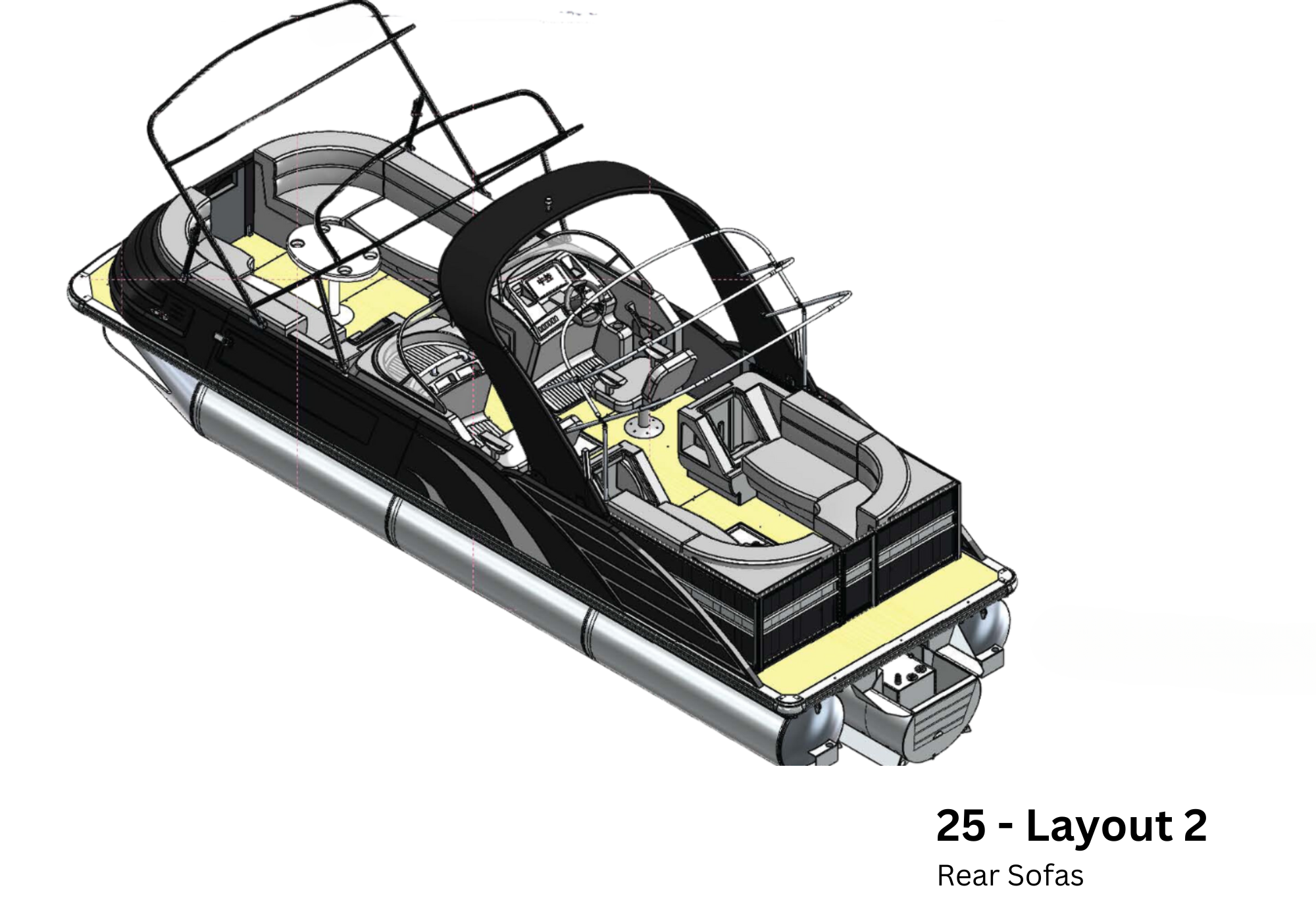

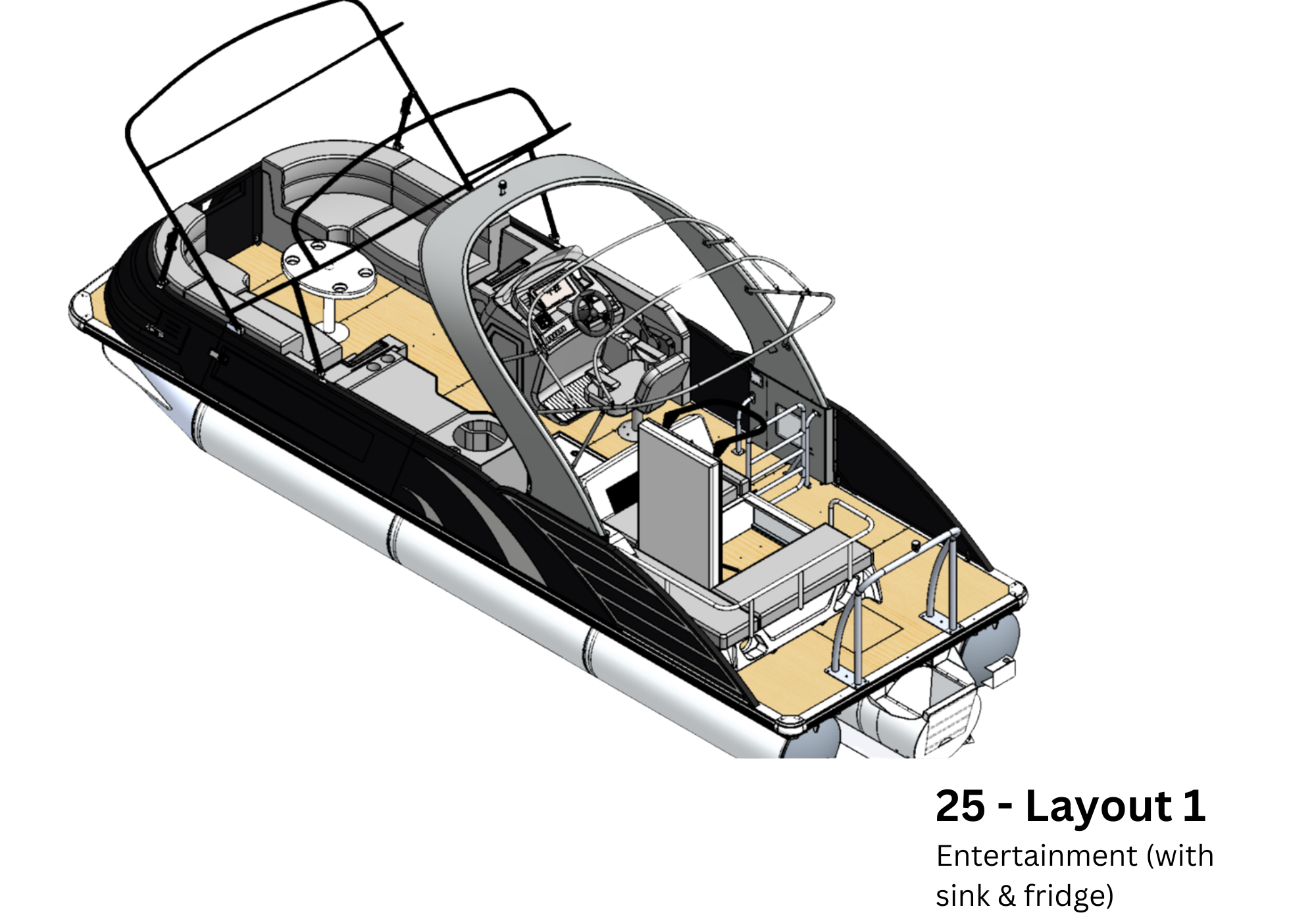

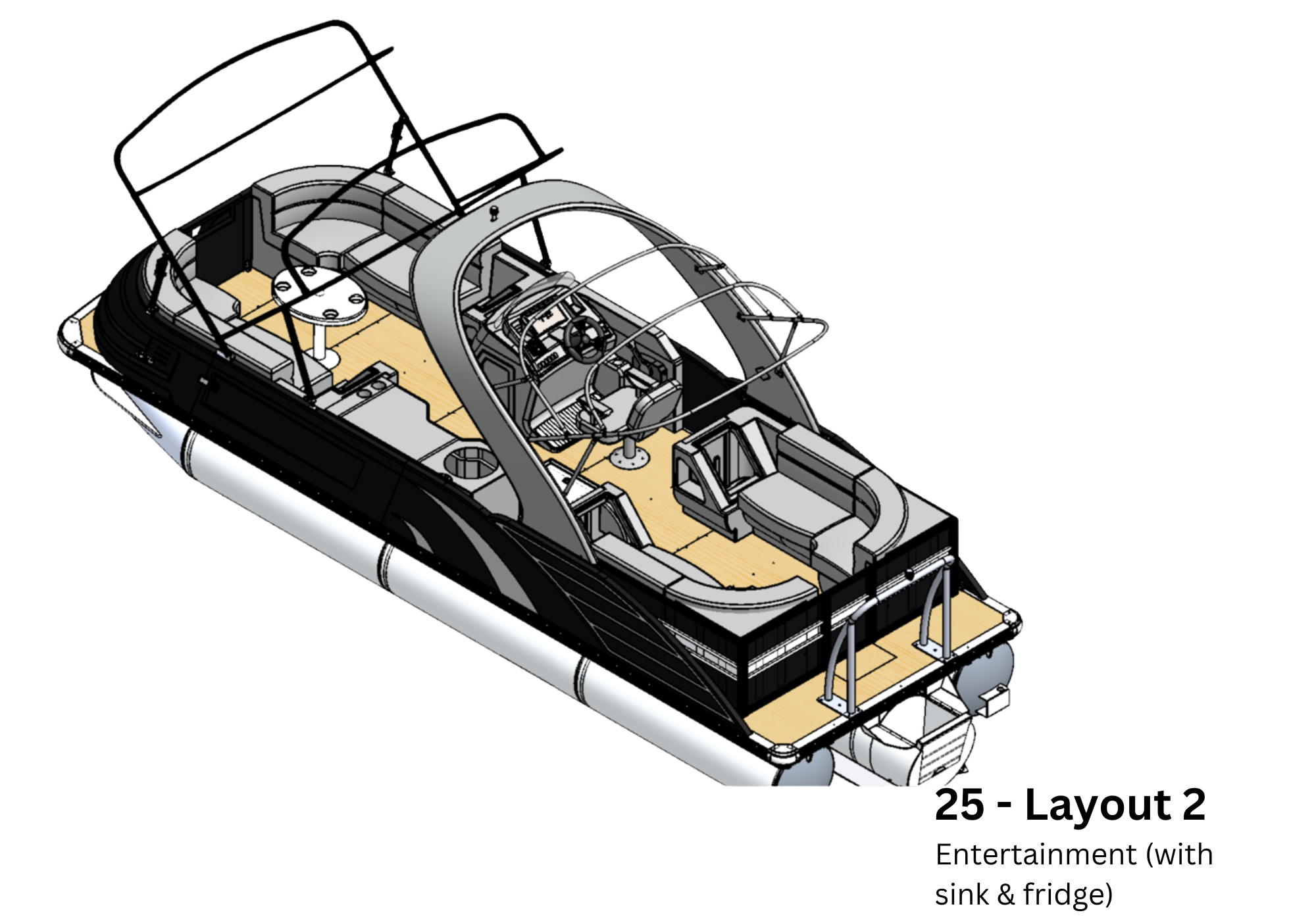

25 Specifications & Layouts
Deck Length: 7.871m
Beam: 2.59m
Max HP: 300
Max Load: 1800kg
Passengers: up to 12
Tubes 3

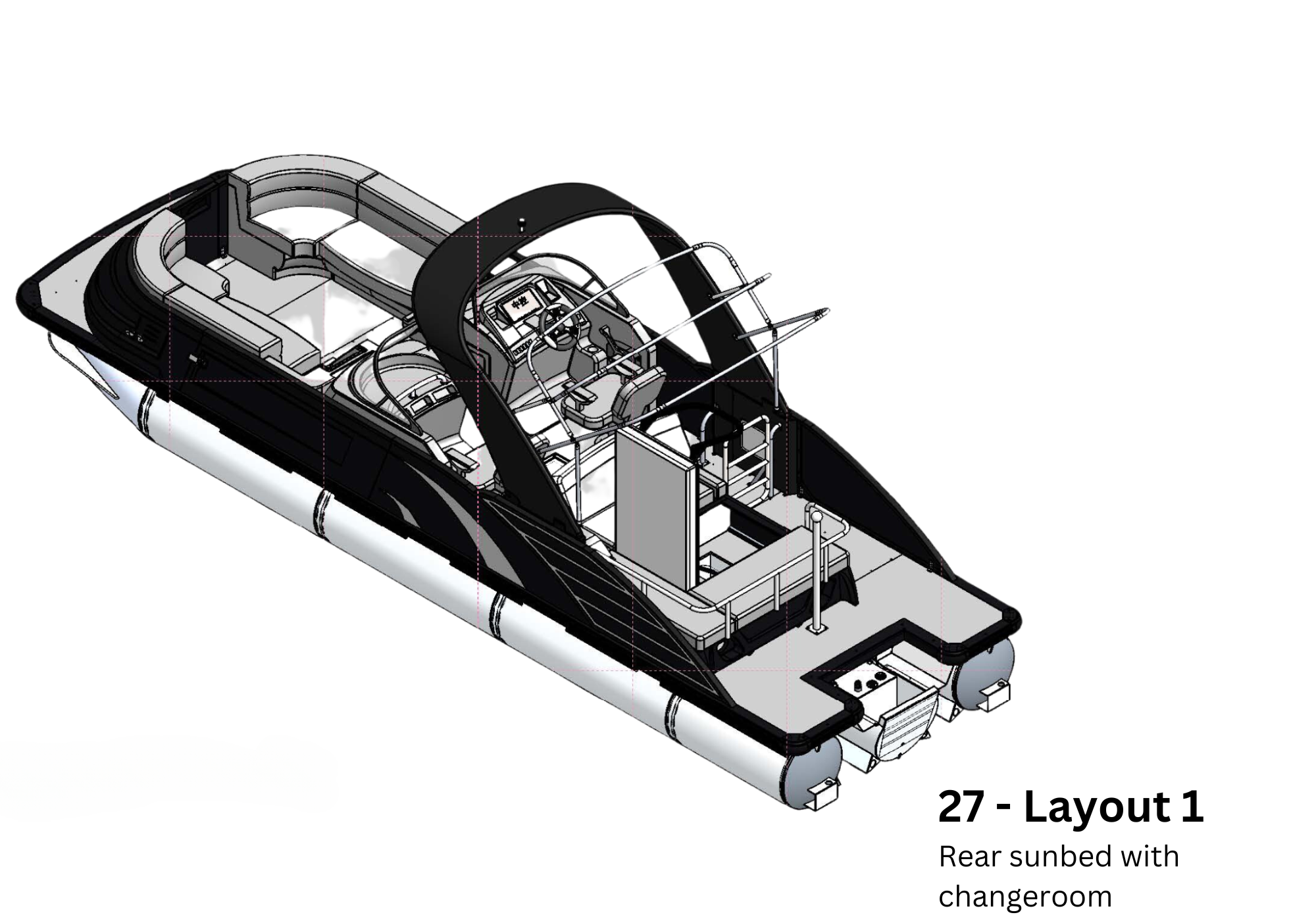

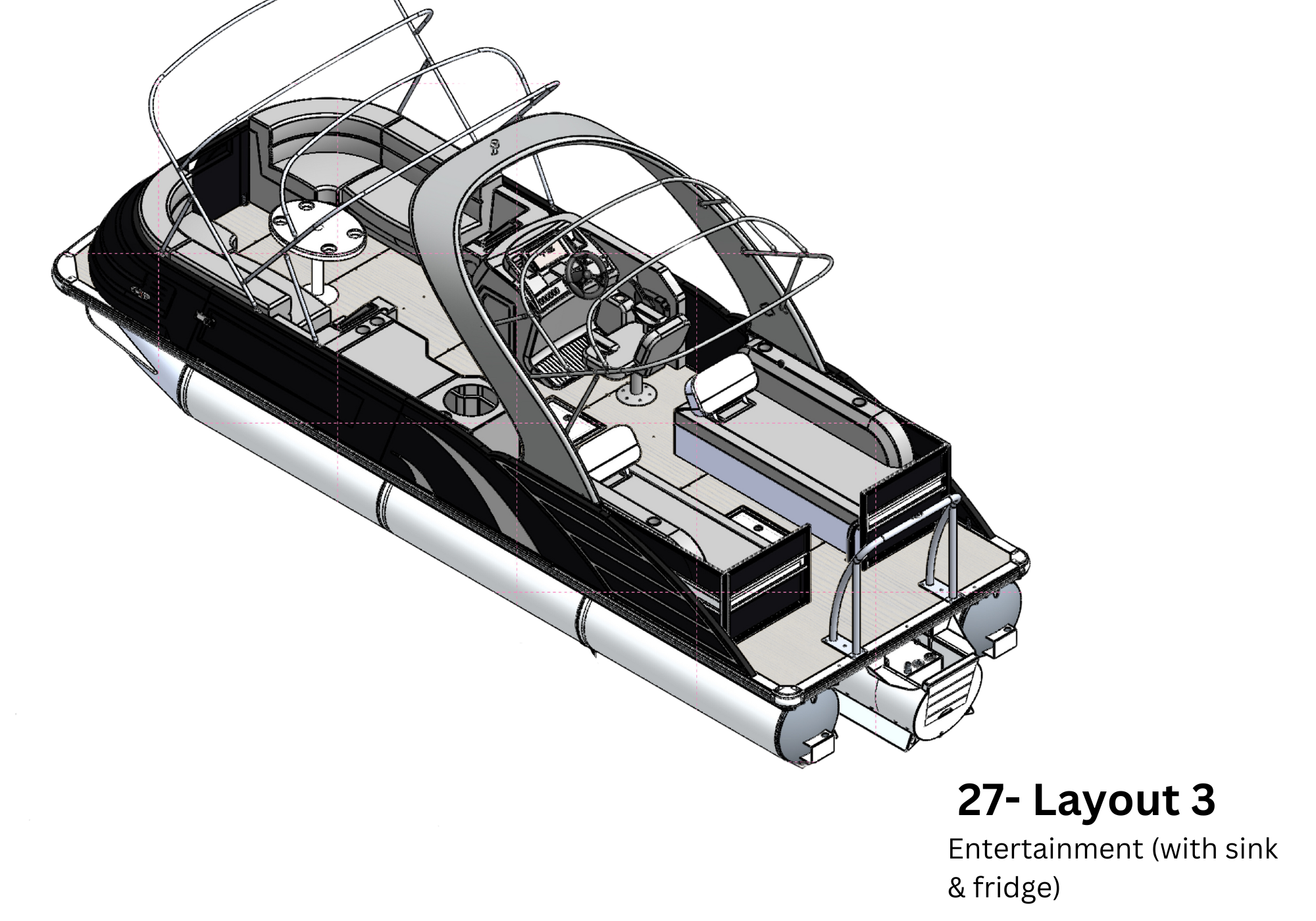

27 Specifications & Layouts
Deck Length: 8.485m
Beam: 2.59m
Max HP: 300
Max Load: 2000kg
Passengers: up to 14
Tubes 3
